Advanced PCBs are commonly used in high-precision electronic devices. With the continuous development of technology, the demand is also getting higher and higher. To this end, the separate advanced PCB production workshop is opened to assist our customers achieve the best possible time to market and competitive advantage by producing PCBs in a sustainable way at the lowest total price through JLH TECHNOLOGY CO.,LTD fabrication capabilities, delivery punctuality and product quality. Check Advanced PCB manufacturingCapability
• Normal FR-4 Board
• Aluminum Board
• Rogers
• HDI(Buried/blind vias)
• Copper Base
• HASL with lead \ lead free
• Immersion gold(ENIG)
• OSP
• Hard Gold
• Immersion silver(Ag)
• Half-cut/Castellated Holes
• Impedance control
• Buried/blind vias
• Via filled with resin
• Countersinks/Counterbores
• Z-axis milling
Children's toys, small appliances, home lighting, functional testing, electronic enthusiasts, etc. Suitable for users whose prices are core competitiveness
| Senior engineer (one file/6 hours) | Engineering | mid-level engineer (5 files/hours) |
| individual working panel | Production | mixed working panel |
| ≥1 piece | Quantity | 5,10,15,20,25...pieces |
| Shengyi,Rogers,Arlon,Isola,Omega,Nelco,3M etc. Meet IPC4101 class B/L | Material | KB(kingboard)/GDM(goldenmax) Meet IPC4101 class B/L |
| Rohm&Haas,TAIYO,Kuangshun,Meet IPC-SM-840 class | Ink,Soldermasks | TAIYO,Kuangshun,Meet IPC-SM-840 class T |
| Min Mechanical Hole Size 0.15mm,Laser hole 0.1mm | Drilling | Min Mechanical Hole Size 0.2mm |
| PTH (Hole copper thickness≥20um),IPC 3(25um) | Plating | PTH（Hole copper thickness≥18um） |
| ±2mil | Soldermask offset | ±3mil |
| ±0.13mm | Dimensional deviation | ±0.2mm |
| 0.75% | Warping angle | 1% |
| A.O.I,Kelvin Four-terminal sensing,Microsection Inspection,Solderability Test,Impedance Test... | Test method | A.O.I.,Fly Probe Testing |
| >140℃ | Glass transition ℃ | >130℃ |
| Humidity indicator cards | Package | None |
| Inspection report | Inspection report | None |
| IPC Class 2,IPC Class 3,Automotive Standard, Customer Standard | Standard | IPC Class 2 |
| Forbid to repair tracks(IPC 3,Automotive, Customer Standard) | Etched line | - |
| Cleanliness requirements beyond those of IPC | Cleanliness | Meet IPC standards |
| UL,ISO9001:2008,ISO14001:2004,ISO/TS16949:2009, RoHS etc. | Certification | UL,ISO9001:2015,RoHS etc. |

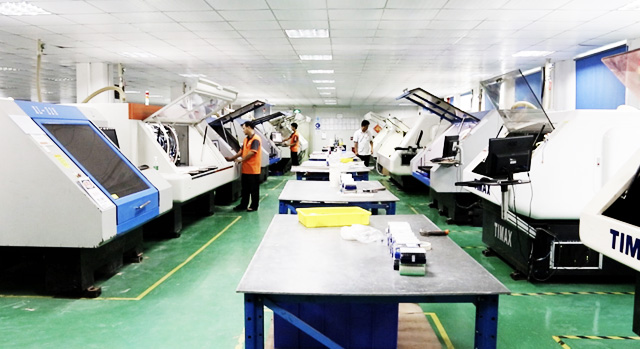

JLH TECHNOLOGY CO.,LTD Automated Production Lines and Professional Technicians
Material：FR-4 TG150
Application Area：Industrial control
Layers/Thickness：6/1.6mm
Surface Finish：Immersion gold
Min Track/Spacing：3/3mil
Min Hole Size：0.15mm
Material：Rogers - Rogers4003C
Application Area：Industrial control
Layers/Thickness：4/1.6mm
Surface Finish：Immersion gold
Min Track/Spacing：3/3mil
Min Hole Size：0.15mm
Material：FR4+FCCL
Application Area：Electronic Industry PCBs
Layers/Thickness：4L/0.8mm
Surface Finish：OSP
Min Track/Spacing：4/4mil
Min Hole Size：0.20mm
Material：Aluminum Board(Conductivity: 5.0W)
Application Area：Electronic Industry PCBs
Layers/Thickness：1L/1.0mm
Surface Finish：HASL lead free
Min Track/Spacing：6/6mil
Min Hole Size：1.0mm
APPLICATION INDUSTRIES
NETWORK & COMPUTER
CONSUMER ELECTRONICS
TELECOMMUNICATIONS
AEROSPACE
AUTOMOTIVE ELECTRONICS
NEW ENERGY
BIOMEDICAL
